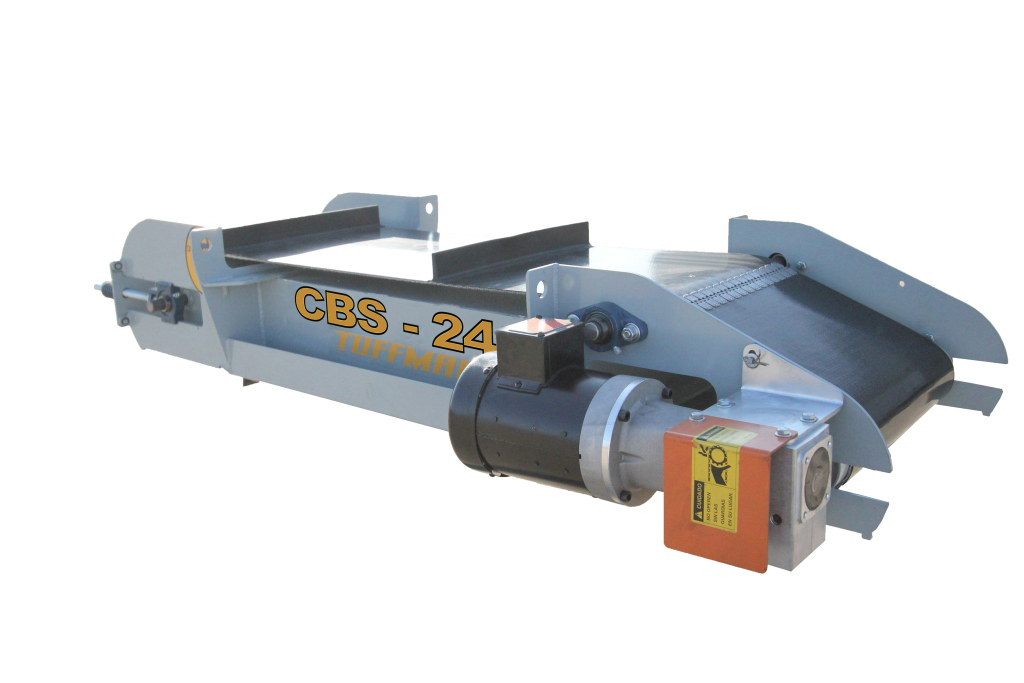

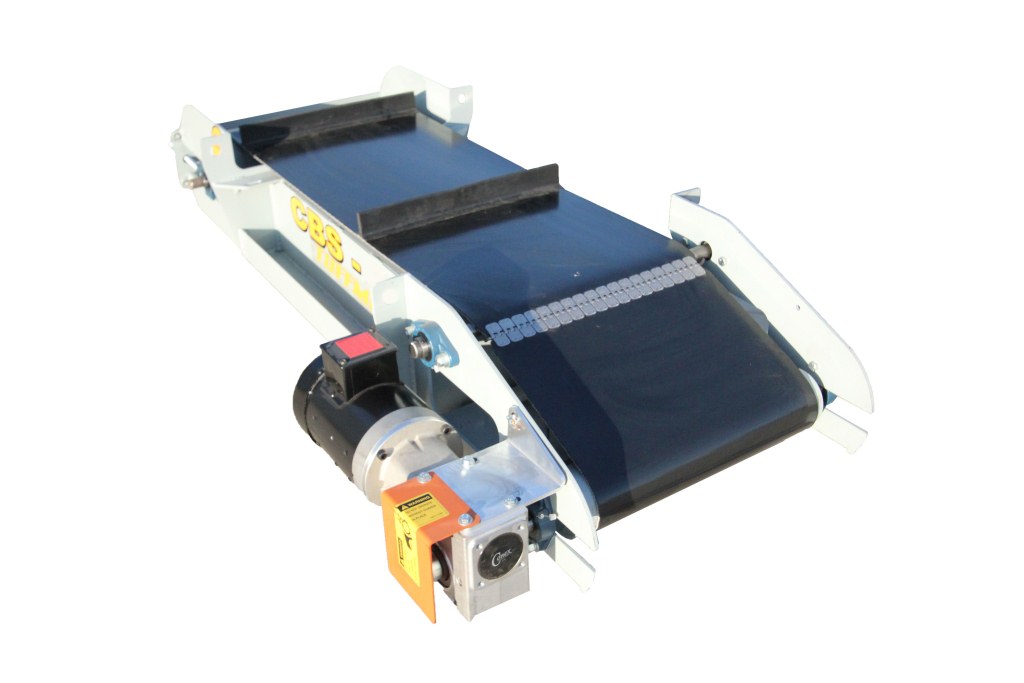

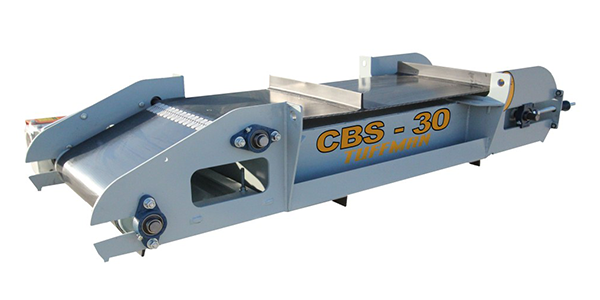

Crossbelt Magnet Separators

Tuffman Crossbelt Magnet Separators provide a powerful yet efficient part of recycling systems for the separation of ferrous from a non-ferrous product found in municipal solid waste and hemp, sand, gravel, lumber mill by-products, debris, topsoil, glass, compost, rock, minerals, construction, and demolition waste. Widely used in the sorting of co-mingled refuse to remove steel cans, bottle caps, and more.

Clear
Category: SKU: Magnet_01

Description

  • Seven standard self-cleaning models to fit your requirements and increase productivity.
  • All are equipped with permanent magnets and a 3/4 horsepower motor.
  • Belts are made of heavy-duty rubber with cleats spaced according to the application.
  • The maximum recommended belt speed is 155 FPM.

Photos

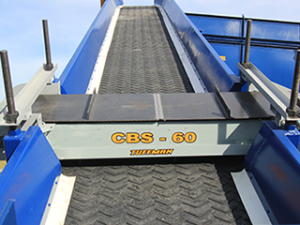

Steel recycling

Videos

Specifications

Width Weight Drive Magnet Belt Mounting
18″ 583 lbs. 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging
24″ 750 lbs. 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging
30″ 900 lbs. 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging
36″ 1050 lbs 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging
42″ 1120 lbs. 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging
48″ 1280 lbs. 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging
60″ 1740 lbs. 3/4 hp motor, gearbox Ceramic8 Magnet Assembly, 12″ carryover magnet Cleated Belt (4) Eyelets for Hanging



Applications

Tuffman® Crossbelt Magnet Separators are used for the separation of ferrous from a non-ferrous product and are useful for a variety of applications, including:

  • Municipal solid waste (MSW)
  • Hemp/cannabis
  • Aggregates: sand, gravel & rock
  • Lumber mill by-products
  • Debris
  • Topsoil
  • Glass
  • Compost
  • Minerals
  • Wastewater
  • Sludge
  • Construction, and demolition waste
