Sorting Stations

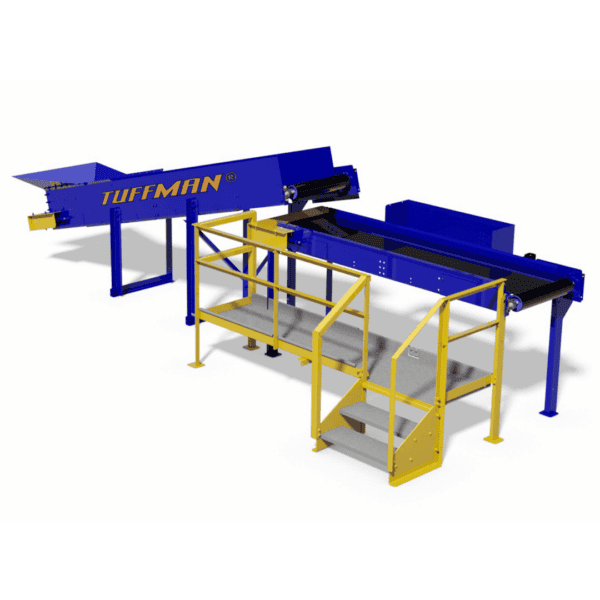

Tuffman® Sorting Stations are available in various sizes, including QC, 3-Bin, 4-Bin, 6-bin, 8-bin, and 12-bin models, and are ideal for sorting construction and demolition debris and municipal solid waste material. The perfect choice for high-volume recycling, material separation, and single-stream sorting of a commingled commercial waste stream. Each system includes an infeed trough conveyor and your choice of a roller bed or slider bed sort conveyor to fit your processing needs.

Clear
Category: SKU: N/A

Description

A wide variety of options include variable speed conveyor drives, belt cleaners, and various accessories.

Equipped with:

  • Variable speed controls
  • Emergency shut-offs on both sides
  • Two sets of stairs, and integrated walkways
  • Available with support leg heights of 6ft, 10ft, and 14ft
  • Your choice of slider bed or roller bed sorting conveyor

SPECIFICATIONS

Sort System Infeed Conveyor Sort Conveyor
Infeed Width Infeed Length Conveyor Type Belt Type Motor HP Sort Width Sort Length Belt Type Motor HP
 3 Bin 30′ 16′ Slider Bed Chevron 2 30′ 21′ Smooth 2
 4 Bin 30′ 16′ Slider Bed Chevron 2 30′ 26′ Smooth 2
 6 Bin 6 FT 60′ 30′ Troughing Chevron 3 60′ 31′ Smooth 2
 6 Bin 10 FT 60′ 30′ Troughing Chevron 3 60′ 31′ Smooth 2
 6 Bin 14 FT 60′ 40′ Troughing Chevron 3 60′ 31′ Smooth 2
 8 Bin 6 FT  60′ 30′ Troughing Chevron 3 60′ 38′ Smooth 2
 8 Bin 10 FT 60′ 30′ Troughing Chevron 3 60′ 38′ Smooth 2
 8 Bin 14 FT  60′ 40′ Troughing Chevron 3 60′ 38′ Smooth 2
 12 Bin 6 FT 60′ 30′ Troughing Chevron 3 60′ 51′ Smooth 3
 12 Bin 10 FT  60′ 30′ Troughing Chevron 3 60′ 51′ Smooth 3
 12 Bin 14 FT 60′ 40′ Troughing Chevron 3 60′ 51′ Smooth 3

APPLICATIONS

Tuffman® Sorting Stations are used in any sorting work and are useful for a variety of applications, including:

  • Municipal solid waste (MSW)
  • Hemp/cannabis
  • Aggregates: sand, gravel & rock
  • Lumber mill by-products
  • Debris
  • Topsoil
  • Glass
  • Compost
  • Minerals
  • Wastewater
  • Sludge
  • Construction, and demolition waste

OPTIONS

  • Crossbelt magnet
  • Magnetic head pulley
  • Customized leg heights and spacings, conveyor width, belt type
  • Bag breaker and trommel screen options
  • Portable or stationary generator options
  • Right angle feed for additional price
  • Available in a variety of different voltage inputs

VIDEOS

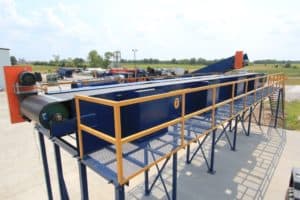

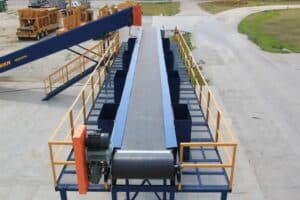

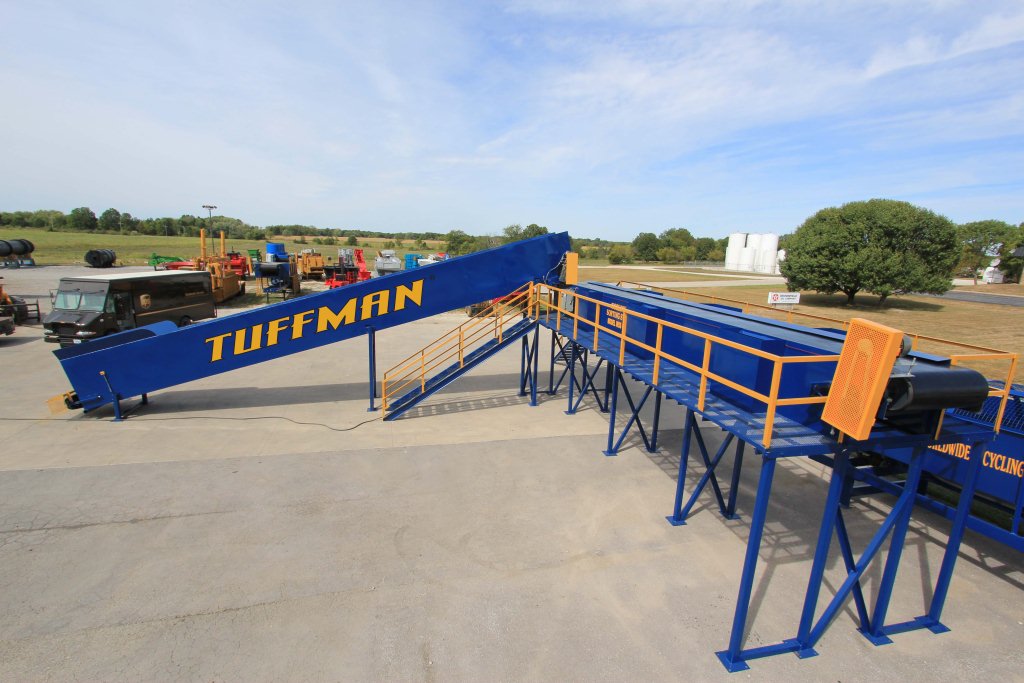

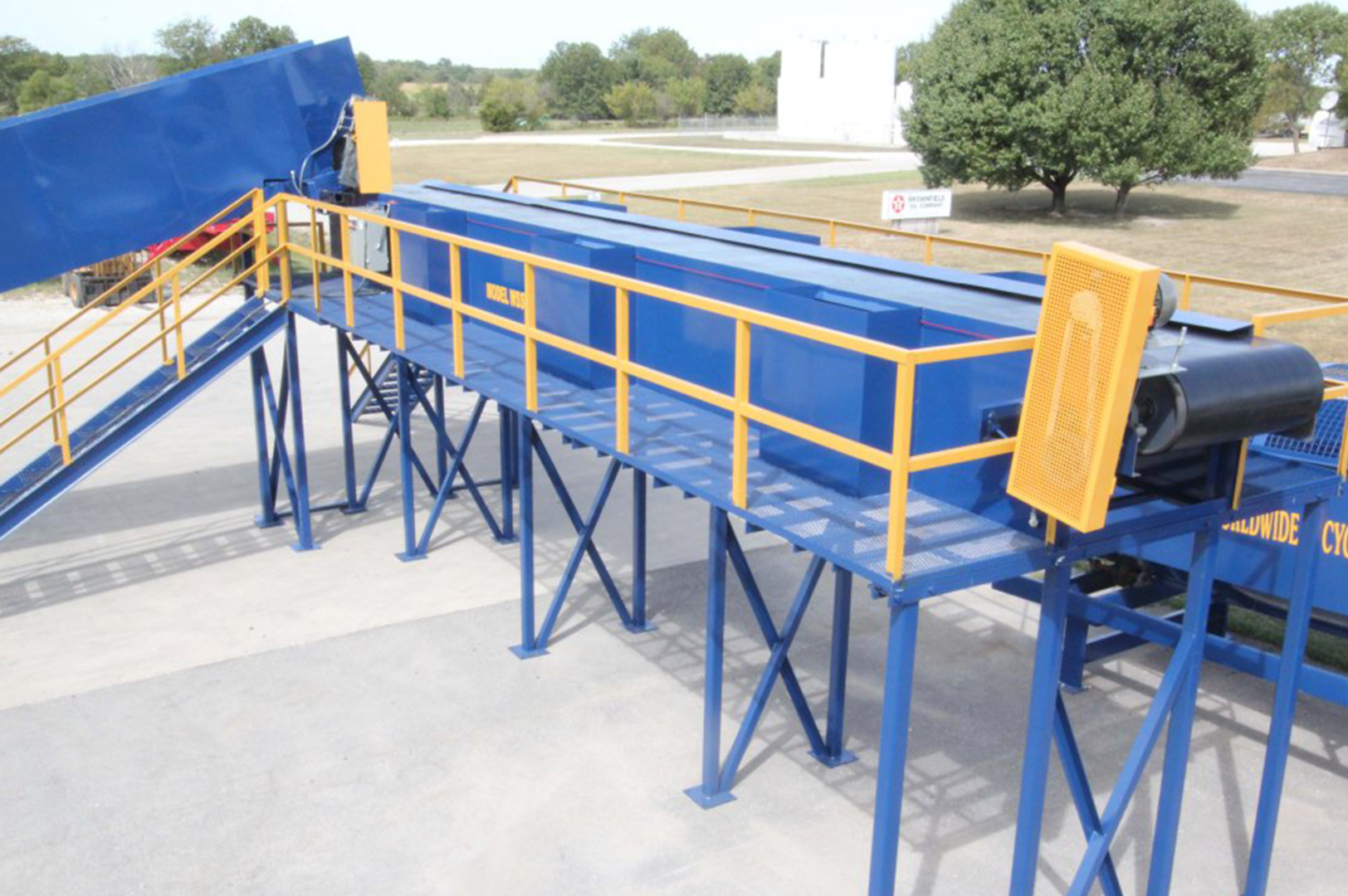

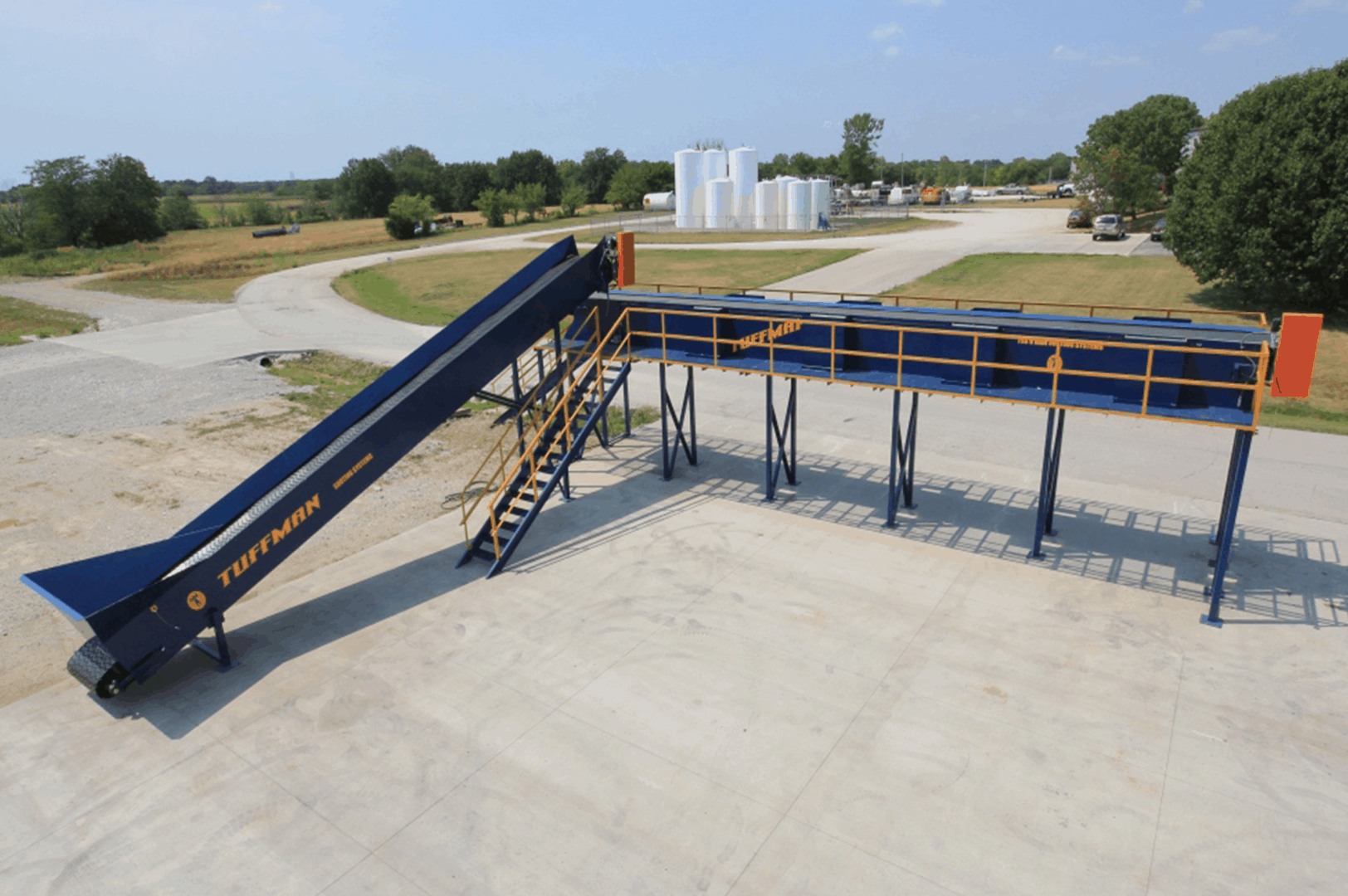

PHOTOS
