Rotary Trommel Screen

Tuffman® Rotary Trommel Screens provide proper and consistent size separation and classification. The rotary trommels separate and size material, providing high output screening of fines and other minus material. As the material passes through the trommel, the smaller debris falls through the screen openings, passing the larger material on for further processing, making them the best choice for pre-screening before a sorting station or other processes.

Tuffman® Rotary Trommel screens are excellent for excavation sifting and separating of materials and are used across multiple applications.



Clear
Category: SKU: TROM_01 Tag:

Description

  • Available in a variety of diameters and lengths. Sizes range from (3’) diameter x (10’) long to (8’) diameter x (30’) long.

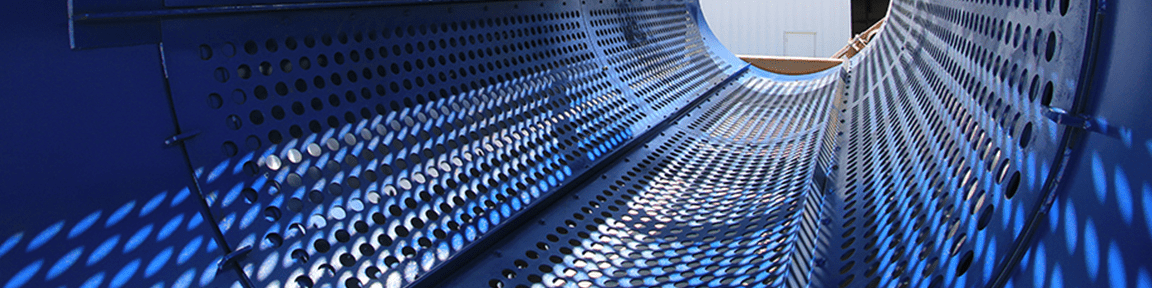

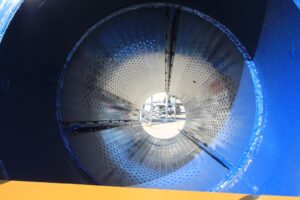

  • Wire mesh screen and perforated plate screen options depending on the application.
  • Heavy-duty frame with 4 (four) support legs and adjustable feet for a 0-4 degree decline.
  • Chain and sprocket drive system with a body that rolls on polymer caster wheels.
  • 3-phase 460 volt electric motor.



Specifications

Model Diameter Length Screen Sections Rows of Flights Chutes Underneath Motor Size Estimated TPH

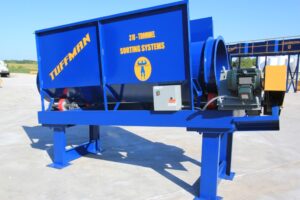

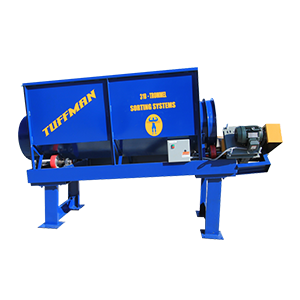

310 3′ 10′ 1 3 1 5 HP 20
415 4′ 15′ 2 4 2 5 HP 40
618 6′ 18′ 3 4 3 10 HP 70

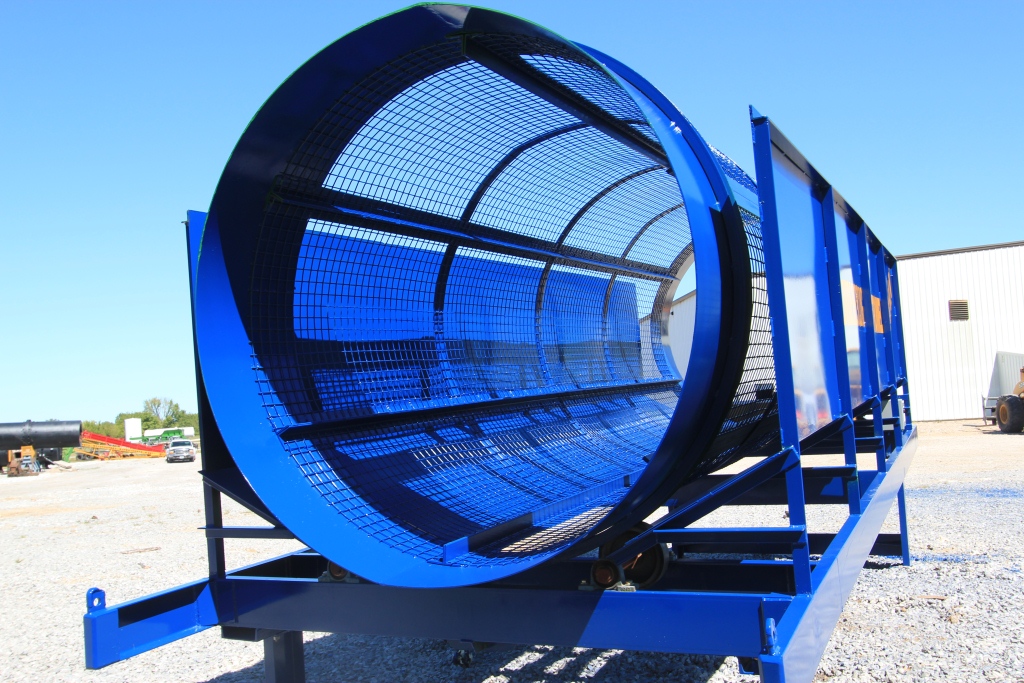

722 7′ 22′ 3 5 3 10 HP 105
822 8′ 22′ 3 5 3 10 HP 120

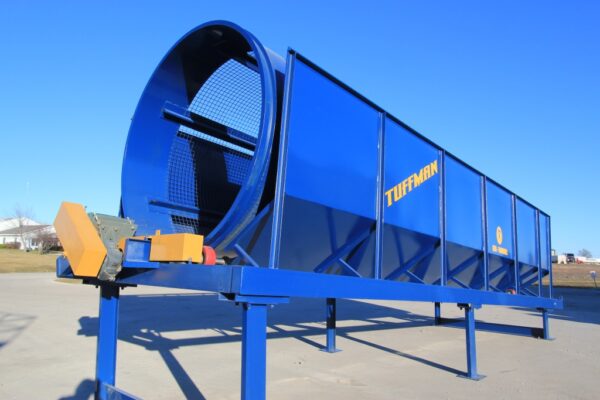

830 8′ 30′ 3 5 3 10 HP 180

Applications

Tuffman® Stationary rotary trommels are used in any sifting or separation work and are useful for a variety of applications, including:

  • Municipal solid waste (MSW)
  • Hemp/cannabis
  • Aggregates: sand, gravel & rock
  • Lumber mill by-products
  • Debris
  • Topsoil
  • Glass
  • Compost
  • Minerals
  • Wastewater
  • Sludge
  • Construction, and demolition waste

Options

  • Feed chute
  • Feed conveyor
  • Discharge chute
  • Discharge conveyor
  • Fines discharge chute
  • Fines discharge conveyor
  • Custom screen sizes
  • Bolt-in screens
  • Removable dust enclosure
  • Cleaning brushes
  • Custom discharge height
  • Variable frequency drive
