Crossbelt Magnet Separators

Tuffman magnet conveyor

TUFFMAN® new CBS crossbelt magnet separators are available in 18 inch, 24 inch, 30 inch, 36 inch, 42 inch, 48 inch and 60 inch models. Cross belt magnets are ideal for recycling operations and are widely used for sorting co-mingled metals and separating various metals from the recycling stream. All magnets come equipped with a belt made of heavy-duty rubber with cleats. TUFFMAN® can integrate crossbelt magnet separators into a sorting station or inclined belt conveyor, taking the guesswork out of installation and commissioning.

Showing all 7 results

CBS- 18

18″ Crossbelt Magnetic Separator

  • Weight: Approximately 583 lbs.
  • Drive: 3/4 hp motor, gearbox
  • Magnet: Ceramic8 Magnet Assembly, 12″ carryover magnet
  • Belt: Cleated Belt
  • Mounting: (4) Eyelets for Hanging
magnet separator

24″ Crossbelt Magnetic Separator

  • Weight: Approximately 750 lbs.
  • Drive: 3/4 hp motor, gearbox
  • Magnet: Ceramic8 Magnet Assembly, 12″ carryover magnet
  • Belt: Cleated Belt
  • Mounting: (4) Eyelets for Hanging
Tuffman magnet conveyor

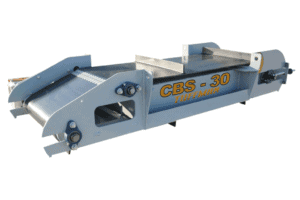

30″ Crossbelt Magnetic Separator

  • Weight: Approximately 900lbs.
  • Drive: 3/4 hp motor, gearbox
  • Magnet: Ceramic8 Magnet Assembly, 12″ carryover magnet
  • Belt: Cleated Belt
  • Mounting: (4) Eyelets for Hanging
magnet separator

42″ Crossbelt Magnetic Separator

  • Weight: Approximately 1120lbs.
  • Drive: 3/4 hp motor, gearbox
  • Magnet: Ceramic8 Magnet Assembly, 12″ carryover magnet
  • Belt: Cleated Belt
  • Mounting: (4) Eyelets for Hanging
magnet separator

48″ Crossbelt Magnetic Separator

  • Weight: Approximately 1280lbs.
  • Drive: 3/4 hp motor, gearbox
  • Magnet: Ceramic8 Magnet Assembly, 12″ carryover magnet
  • Belt: Cleated Belt
  • Mounting: (4) Eyelets for Hanging
Magnet Separator

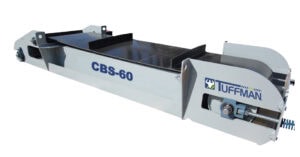

60″ Crossbelt Magnetic Separator

  • Weight: Approximately 1280lbs.
  • Drive: 3/4 hp motor, gearbox
  • Magnet: Ceramic8 Magnet Assembly, 12″ carryover magnet
  • Belt: Cleated Belt
  • Mounting: (4) Eyelets for Hanging
